Atrial Catheterization Cable for the Medical Industry

Atrial Catheterization Cable

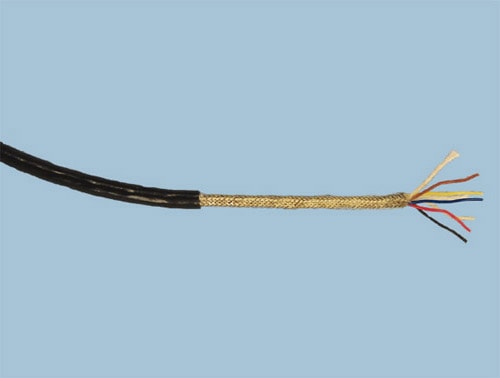

A California based supplier of cable assemblies for the medical industry came to us for our custom cable design and manufacturing services. The cable required would be used during atrial catheterization procedures. The cable consisted of 12 conductors 28AWG stranded tinned plated copper wires insulated and jacketed with a flexible, medical grade TPE compound and shielded with a fine gauge tinned plated copper spiral shield. The diameter of the cable measured .137″ and was produced in 1,000′ lengths. Our manufacturing tolerances for this project were ±.005″. Able to withstand temperatures up to 105°C, this cable meets the exacting needs of medical applications such as patient monitoring, electrosurgical, catheterization, defibrillators and X-ray.

This project required EIS to complete the design and prototype within two weeks. In meeting the deadline, this cable was the first to be submitted for testing and was approved as a replacement cable design.

To learn more about this cable design and manufacture project, please refer to the table below or contact us with any additional inquiries.

Cable Design & Manufacturing Project Highlights

Product Name

Atrial Catheterization Cable

Product Description

EIS designed and built a prototype cable for use within medical equipment.

Capabilities Applied/Processes


  • Incorporated customers design requirements

Wire Extrusion
Cable Core Twisting
Shielding and Jacket Extrusion

Equipment Used to Manufacture Part

Wire Braider

Overall Part Dimensions

12/C 28AWG Cable
Diameter: Ø.137″
Length: 1,000′ Multiples

Tightest Tolerances

+/- .005″

Materials Used

Insulation & Jacket: Medical Grade TPE
Shielding: Tinned Plated Copper



In process testing/inspection performed



Withstands Temperatures Up to 105°C

Industry for Use


Turn Around Time

2 Weeks ARO

Delivery Location


Standards Met

Customer supplied specification
